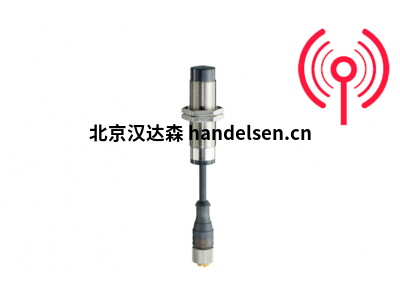

Steute IS M18
金屬外殼
M18 x 1螺紋
嵌入式安裝
壽命長，無機械磨損
對污垢不敏感
帶LED
帶預接線電纜或插入式連接器
技術數(shù)據
應用標準EN 60947-5-2
外殼黃銅，有刻痕
前蓋POM
防護等級IP 67，符合IEC/EN 60529
連接電纜PVC（4.1 mm）3 x 0.25 mm²或插入式連接器M12 x 1
開關元件1 NO觸點，PNP，3線
額定開關距離sn 5 mm或8 mm
校正系數(shù)鋼（Fe360）=1；不銹鋼約0.7；黃銅約0.5；鋁約0.4；銅約0.4
額定工作電壓范圍UB 10…30 VDC
殘余波紋≤10%
開關電流。零點二一
Ie時的電壓降。1.8伏
24 VDC時電流吸收<15 mA
滯后約。10%
開關頻率1000 Hz或400 Hz
重復性≤3%
保護電路感應干擾保護、極性反轉保護、短路保護和過載保護
LED顯示屏在啟動時亮起黃色
環(huán)境溫度-25°C…+85°C
Type Material no.
Steute IS M18b 5AAACA PNP NO 2m1202177
Steute IS M18b 8AAACA PNP NO 2m1202181
Steute IS M18b 5AAAC PNP NO ST21202179
Steute IS M18b 8AAAC PNP NO ST21202183
| 品牌 | 貨號 | 型號 |
| Burocco | 1AEC2IBAS1D2 | VO - VP/FL - DN40 - PN16 - AISI 316L /AISI 304 - FL PN40 RF - SILIC. - S.118 (magg.) - NA - Dp 16 BAR - A.P. |
| Burocco | ||
| Burocco | 1AEC2IBER2D5 | VO - VP/FL - DN40 - PN16 - AISI 316L /AISI 304 - FL PN40 RF - SILIC. - S.118 (magg.) - NA - Dp 16 BAR - A.P. |
| Burocco | ||
| Burocco | 1AEC2IBES1D2 | VO - VP/FL - DN40 - PN16 - AISI 316L / AISI 304 - FL PN40 RF - SILC. - S.118 (magg.) - NC - Dp 18 BAR - DV |
| Burocco | ||
| Burocco | 1AGC2IBEU1D2S | VO - VP/FL - DN65 - PN16 - AISI 316L / AISI 304 - FL PN40 RF - SILIC. - S.136 (magg.) - NC - Dp 16 BAR - DV |
| Burocco | ||
| Burocco | AKEVSEV54SM1-A ARFUAS14-SM1- |
for VP/FL DN40 NC KIT SOLENOID VALVE 1/4" - 3/2V NC - 24V CC SINGOLO SOLENOIDE + ConNETTORE + UNIDIRECTIonAL FLOW REGULATOR - 1/4"G |
| Burocco | ||
| Burocco | AKEVSEV54SM1-B | for VP/FL DN40 NO KIT SOLENOID VALVE 1/4" - 3/2V NC - 24V CC SINGOLO SOLENOIDE + ConNETTORE + UNIDIRECTIonAL FLOW REGULATOR - 1/4"G |
| Burocco | ARFUAS14-SM1- | |
| Burocco | ||
| Burocco | AKEVSEV54SM1-F ARFUAS14-SM1- |
for VP/FL DN65 NC KIT SOLENOID VALVE 1/4" - 3/2V NC - 24V CC SINGOLO SOLENOIDE + ConNETTORE + UNIDIRECTIonAL FLOW REGULATOR - 1/4"G |
| Burocco | ||
| Burocco | Burocco 氣動接頭 外徑8mm | 氣動控制器氣動管道接頭， |
| Burocco | 外徑8mm | |
| Burocco | CMLD96-114-CC | for VPFL DN40 Drop 18bar, SPRING VO DN65 NC - S.118 - OTEVA 70 |
| Burocco | ||
| Burocco | CPID94-007AGC | for VPFL DN40 Drop 18bar, PISTON VO DN65 2V - NC - S118 - ALLUMINIO ANTICORODAL 6026 ANODIZZATO |
| Burocco | ||
| Burocco | Hansastedt ECO-Line Elektromagnet Satz | KIT SOLENOID VALVE for VP/FL NC/NO |
| Burocco | ||
| Burocco | Hansastedt Premium-Line Elektromagnet Satz | KIT SOLENOID VALVE for VP/FL NC/NO |
| Burocco | ||
| Burocco | ROAE00AS1A | for VPFL DN40 Drop 18bar, Sealing Kit - VALV.ON-OFF - VPFL/SBS - DN40 - PTFE - S.118 (magg.) - NC |
| Burocco | ||
| Burocco | ROAE00ES1A | for VPFL DN40 Drop 18bar, Sealing Kit - VALV.ON-OFF - VPFL/SBS - DN40 - SILIC. - S.118 (magg.) - NC |
