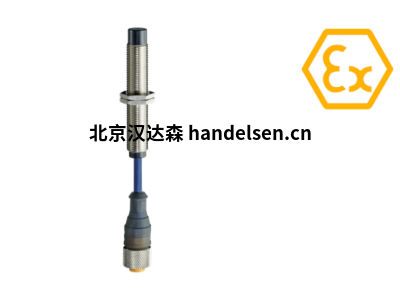

Steute Ex IS M8b
防爆區 0 和 20
不銹鋼外殼
齊平或非齊平安裝
壽命長，無機械磨損
適用于食品加工業
對臟污不敏感
帶發光二極管
M8 x 1 螺紋
帶預接線電纜
合適的本質安全開關放大器參見章節/ Ex IS 安全開關放大器 >
技術數據
適用標準EN 60079-0、EN 60079-11、EN 60079-26
外殼不銹鋼 1.4305
前蓋聚甲醛
防護等級IP 66、IP 67、IP 68（EN 60079-0 + IEC/EN 60529）
聯系電纜 PUR 藍色
電纜直徑4.1 毫米
電纜橫截面2 x 0.25 平方毫米
切換系統Namur 符合 EN 60947-5-6
額定開關距離 s n Ex IS M8b：1 毫米；
Ex IS M8nb：2 毫米
校正因子鋼（Fe360）=1；不銹鋼約。0.7； 黃銅約。0.5； 鋁約。0.4； 銅約。0.4
額定工作電壓范圍 U B8.2 伏直流電
吸收電流存在金屬時 ≤ 1 mA；沒有金屬時 ≥ 3 mA
開關頻率2000赫茲
重復性≤ 3 %
保護電路感應干擾保護、反極性保護、短路保護和過載保護
環境溫度–25 °C … +60 °C
防爆標記II 1G Ex ia IIB/IIC T6 Ga,
II 1D Ex ia IIIC T85°C Da IP66/IP67/IP68
IECEx Ex ia IIB/IIC T6 Ga
Ex ia IIIC T85°C Da IP66/IP67/IP68
批準IMQ 14 ATEX 001
IECEx IMQ 14.0001X
類型 物料編號
Steute Ex IS M8b 1ABBAB N 1GD 2m1202202
類型 物料編號
Steute Ex IS M8nb 2ABBAB N 1GD 2m1202204
Steute Ex IS M8nb 2ABBAB N 1GD 5m1376603
