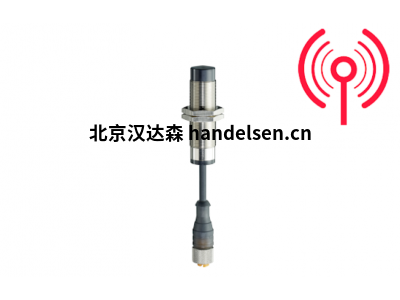

Steute RF IS M30 NB-ST
金屬外殼
M30 x 1.5 螺紋
非嵌入式安裝
連接到RF 96 ST 或 RF I/O 通用發射器
帶 M12 聯軸器，4 極
筆記
交付中包含 2 個安裝螺母
技術數據
適用標準EN 60947-5-2、EN 61000-6-2、EN 61000-6-3
外殼黃銅，鍍鎳
執行器鋼板 45 x 45 x 1 毫米，F(xiàn)E 360
前蓋PVC，黑色
后蓋PVC，黑色
防護等級IP 67 符合 IEC/EN 60529
聯系聯軸器 M12 x 1，4 極
電纜長度0.5 m、1 m 或 2 m
環境溫度–25 °C … +70 °C
額定絕緣電壓 U i75 伏直流電
額定工作電流 I e0.2毫安
額定工作電壓 U e3 … 5 伏直流電
額定開關距離 s n 15 毫米
保證開關距離 s a 0 … 12.15 毫米
實際開關距離 s r 13.5 … 16.5 毫米
遲滯約 10%
重復性≤ 5%
安裝類型非齊平
開關頻率參見 RF 96 ST / RF I/O
校正因子鋼（Fe360）=1；不銹鋼約。0.7； 黃銅約。0.5； 鋁約。0.4； 銅約。0.4
筆記該傳感器只能與 RF 96 ST 或 RF I/O 結合使用
類型 物料編號
Steute RF IS M30 nb-ST 0.5 m1260490
Steute RF IS M30 nb-ST 1 m1228548
Steute RF IS M30 nb-ST 2 m1189976
