TORWEGGE聚酰胺車輪重型滾珠軸承 100mm
PAH-100-40-48-K15
TORWEGGE聚酰胺車輪重型滾珠軸承 125mm
PAH-125-40-53-K20
TORWEGGE聚酰胺車輪重型滾珠軸承 125mm
PAH-125-38-48-K20
TORWEGGE聚酰胺車輪重型滾珠軸承 125mm
PAH-125-50-60-K20
TORWEGGE聚酰胺車輪重型滾珠軸承 200mm
PAH-200-50-60-K25-IB
TORWEGGE聚酰胺車輪重型滾珠軸承 250mm
PAH-250-50-60-K25
TORWEGGE聚酰胺車輪重型滾珠軸承 300mm
PAH-300-60-70-K25

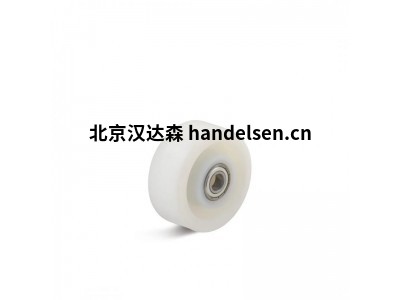

聚酰胺制成的輪體，帶滾珠軸承的中型設計
該輪系列在高負載下不易損壞
，使用壽命長。
聚酰胺可以吸收和釋放水分，
具有很高的耐化學性。
技術規格
軸孔Ø (mm)20
EAN代碼4042974006356
輪圈材質聚酰胺
體重（公斤）0.784
胎面類型加冕
胎面顏色白色的
胎面材料聚酰胺
輪轂直徑 (mm)70
輪轂長度（毫米）60
砂輪直徑 (mm)125
輪寬（毫米）50
車輪軸承滾珠軸承
輪型車輪
負載能力（公斤）800
高耐溫性 (°)90后
低耐溫性 (°)-25
貨號型號車輪直徑輪寬承載量
0022598
PAH-100-40-48-K15100mm40mm500公斤
0022607
PAH-100-50-60-K20100mm50mm600公斤
0022621
PAH-125-38-48-K20125mm38mm700公斤
0022618
PAH-125-40-53-K20125mm40mm600公斤
0034852
PAH-150-40-40-K20150mm40mm700公斤
0022637
PAH-150-50-60-K20150mm50mm800公斤
0022739
PAH-150-50-60-K25150mm50mm800公斤
0022657
PAH-200-50-60-K25-IB200mm50mm1300公斤
0022672
PAH-250-50-60-K25250mm50mm1500公斤
0053764
PAH-250-60-65-K25-EL=63250mm60mm1500公斤
0053736
PAH-300-60-70-K25300mm60mm2000公斤
