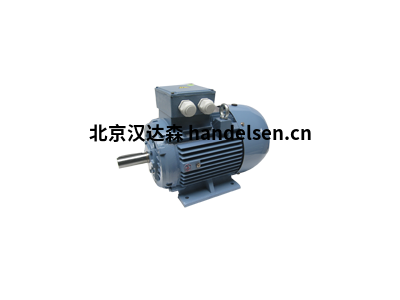

Electramo IE2 鑄鐵殼三相電機YE2-315S-2
Electramo YE2-315S-2型號詳細參數(shù):
絕緣等級: F/B
溫度: -20°C / +40°C
電壓 V: 400
頻率 HZ: 50
輸出千瓦:110
速度 min¯¹:2980
電流 A: 187.10
效率 %: 94.30
成本系數(shù): 0.90
標稱扭矩Nm: 352.52
結構: 鑄鐵
安裝位置: B3- 支腳 - 水平
防護等級: IP 55
冷卻方式: IC 411
任務類型: S1
軸尺寸 mm: 65 x 140
平衡:半鍵
轉動慣量 J:1.2692kgm²
重量公斤: 740
可選項: PTC
Electramo IE2 鑄鐵殼三相電機
鑄鐵外殼,功率11-315KW,2、4、6極可選,效率等級IE3
