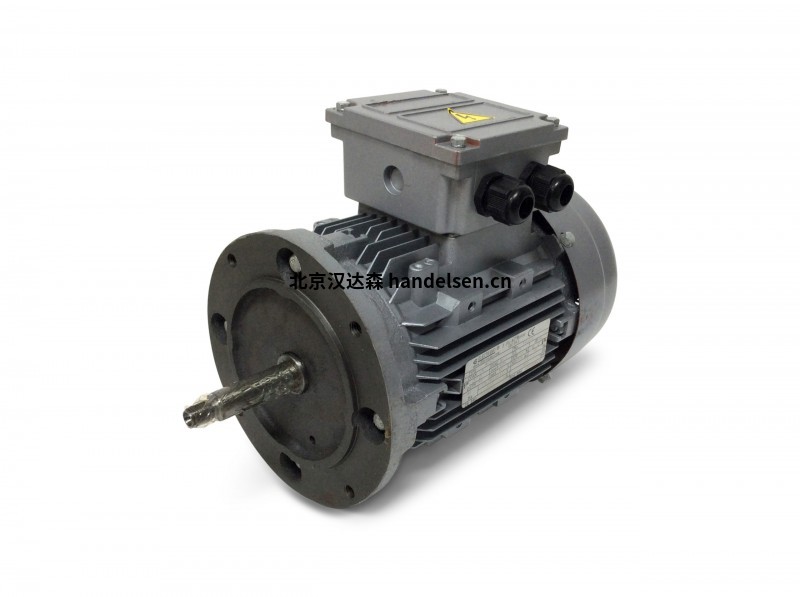

Electramo IE2 鋁殼三相電機EMS90S-2
Electramo EMS90S-2型號詳細參數:
絕緣等級: F/B
溫度: -20°C / +40°C
電壓 V: 400
頻率 HZ: 50
輸出千瓦:1.50
速度 min¯¹:2850
電流 A: 3.26
效率 %: 81.3
成本系數: 0.82
標稱扭矩Nm: 5.02
結構: 鋁
安裝位置: B3- 支腳 - 水平
防護等級: IP 55
冷卻方式: IC 411
任務類型: S1
軸尺寸 mm: 24 x 50
平衡:半鍵
重量公斤:13.3
聲級 dB(A):72
可選項: PTC
Electramo IE2 鋁殼三相電機
鋁制外殼,功率0.75-11KW,2、4、6極可選,效率等級IE2
