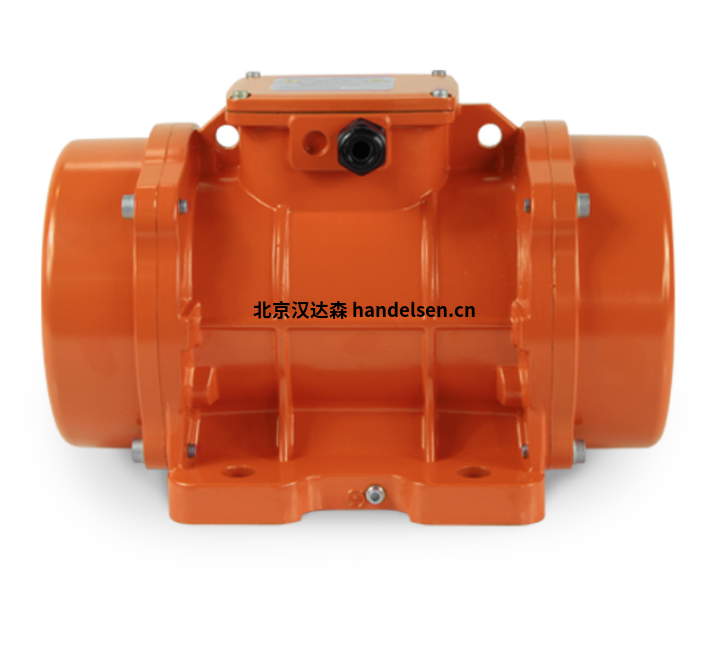

olivibra MVE 標準系列3相6極振動電機
olivibra MVE標準系列振動電機。可應用于助流，安裝于料倉或料斗上用來加快物料的下料，或者在各個工業領域安裝在振動設備上用作驅動，提供輸送、篩選、分級或壓實等作用。
激振力20-40000kg
olivibra MVE 標準系列3相6極振動電機具體型號：
olivibra MVE 50/1E-30A0
olivibra MVE 50/12E-30A0
olivibra MVE 100/1E-30A0
olivibra MVE 100/12E-30A0
olivibra MVE 200/1E-40A0
olivibra MVE 200/12E-40A0
olivibra MVE 300/1E-50A0
olivibra MVE 300/12E-50A0
olivibra MVE 500/1E-50A0
olivibra MVE 500/12E-50A0
olivibra MVE 510/1E-51A0
olivibra MVE 510/12E-51A0
olivibra MVE 800/1E-60A0
olivibra MVE 800/12E-60A0
olivibra MVE 1100/1E-60A0
olivibra MVE 1100/12E-60A0
olivibra MVE 1500/1E-60A0
olivibra MVE 1500/12E-60A0
olivibra MVE 1600/1E-70A0
olivibra MVE 1600/12E-70A0
olivibra MVE 2100/1E-70A0
olivibra MVE 2100/12E-70A0
olivibra MVE 2200/1E-70A0
olivibra MVE 2200/12E-70A0
olivibra MVE 2600/1E-75A0
olivibra MVE 2600/12E-75A0
olivibra MVE 3000/1E-75A0
olivibra MVE 3000/12E-75A0
olivibra MVE 3700/1E-75A0
olivibra MVE 3700/12E-75A0
olivibra MVE 3800/1E-80A0
olivibra MVE 3800/12E-80A0
olivibra MVE 4700/1E-80A0
olivibra MVE 4700/12E-80A0
olivibra MVE 5200/1E-80A0
olivibra MVE 5200/1E-85A0
olivibra MVE 5200/12E-85A0
olivibra MVE 6500/1E-85A0
olivibra MVE 6500/12E-85A0
olivibra MVE 8000/1E-85A0
olivibra MVE 8000/12E-85A0
olivibra MVE 9000/1E-85A0
olivibra MVE 9000/12E-85A0
olivibra MVE 8000/1E-86A0
olivibra MVE 8000/12E-86A0
olivibra MVE 9000/1E-86A0
olivibra MVE 9000/12E-86A0
olivibra MVE 10000/1E-90A0
olivibra MVE 10000/12E-90A0
olivibra MVE 13000/1E-90A0
olivibra MVE 13000/12E-90A0
olivibra MVE 10000/1E-91A0
olivibra MVE 10000/12E-91A0
olivibra MVE 11400/1E-91A0
olivibra MVE 11400/12E-91A0
olivibra MVE 13000/1E-91A0
olivibra MVE 13000/12E-91A0
olivibra MVE 12000/1E-100A0
olivibra MVE 12000/12E-100A0
olivibra MVE 15000/1E-105A0
olivibra MVE 15000/12E-105A0
olivibra MVE 17500/1E-105A0
olivibra MVE 17500/12E-105A0
olivibra MVE 19500/1E-105A0
olivibra MVE 19500/12E-105A0
olivibra MVE 22000/1E-110A0
olivibra MVE 22000/12E-110A0
olivibra MVE 25000/1E-110A0
olivibra MVE 25000/12E-110A0
MVE 50/1E-30A0標準電機參數舉例：
運行模式：S1
防護等級：IP 66
環境溫度：從 -20 °C 到 +40 °C，最高可達 +55 °C
繞組：2、4、6 和 8 極，F(xiàn) 級絕緣材料 (155 °C)；真空浸漬繞組；PTC 熱敏電阻 130 °C 標準，尺寸 60。
偏心質量：完全可調
激震力50HZ：53 KG
重量50HZ：10KG
輸入功率50HZ ：0.12KW
標準額定電流：0.30A
olivibra MVE 標準系列3相6極振動電機
