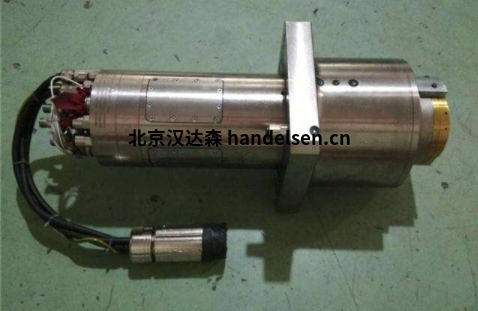

FISCHER PRECISE銑削主軸MFW-1220
MFW-1220/45 CSC - 銑削主軸
配備HSK-E50工具接口和軸冷卻
最佳的熱特性
出色的平穩運行
終極精準
出色的可重復性
軸承設計用于最大負載和速度
其他產品信息
外殼直徑 120
長度 402
最大。速度 45000
重量 25
電機頻率最大 （赫茲） 1500
功率S1（KW） 11
動力S6 60％（KW） 13.8
扭矩S1（Nm） 55
扭矩S6 60％（Nm） 69
工具界面 HSK-E40
潤滑
油氣
選項
包括：通過工具冷卻，編碼器，工具檢測，電機+軸承溫度傳感器
可選：振動傳感器，SmartVision
