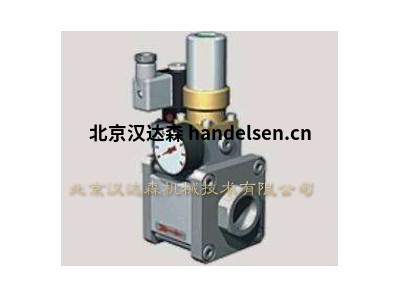

co-ax同軸閥FK 32 DR
二位三通直動式
MK / FK 32 DR
特性
端口 螺紋 G 1 1/4 - G 1 1/2
法蘭 PN 16/40
功能 NC
壓力范圍 0-16 / 0-40 bar
A B max. 40 bar
B A max. 16 bar
A C max. 40 bar
C A max. 16 bar
KV值 A B 14,1 m³/h
A C 8,9 m³/h
介質 氣態 液態 高粘稠 凝膠狀 高污染
流向 見壓力范圍
開關周期 120 1/min
開關時間 打開 440 ms
關閉 250 ms
介質溫度 DC -20 °C — +100 °C
AC -20 °C — +100 °C
環境溫度 DC -20 °C — +80 °C
AC -20 °C — +80 °C
重量 MK 18,0 kg
FK 22,0 kg
標稱電壓 Un 24 V DC
Un 230 V 40-60 Hz AC
驅動 DC 直流電磁鐵
AC 內置式整流器的直流電磁鐵
絕緣等級 H 180 °C
防護等級 IP65
負載率 ED 100%
連接 按DIN EN175301-803標準的插頭, 形式A 4個位置X90°, 電線直徑 6-8 mm
閥門的設計是基于介質和工況的要求.這些因素可能導致設計、密封材料和特性與通用參數表上的規格有所不同.
