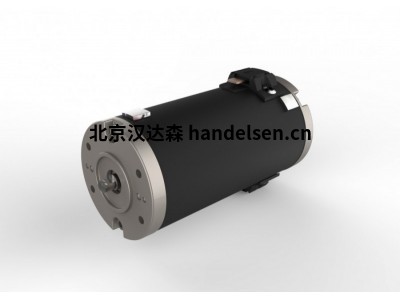

Parvalux直流電動機PM1 DC Motor Family

Parvalux直流電動機PM1 DC Motor Family



技術              直流永磁有刷電動機

功率              45-200瓦

速度              1500-4000轉/分

扭矩              0.3-0.5牛米

拉絲電機系列我們提供多個級別的定制，從標準的“選項”如軸變化、輸出法蘭選項、各種電纜長度、制動器、編碼器、油漆飾面和接線盒，到完整的定制解決方案，包括整合傳動鏈其他組件的能力。我們的應用和工程團隊也有廣泛的應用特定知識，所以請立即致電或發送電子郵件給我們，為您的產品需求提供完美的解決方案。

電動機類型              PMDC公司

變速箱              僅限電機

扭矩              0.3-0.5牛米

速度              1500-4000轉/分

權力              45-200瓦

制動器              對

電容器尺寸              不

軸徑              不              軸特征

平孔鍵槽              軸材料

鋼/不銹鋼              軸輸出

可根據要求提供單端或雙端

接線盒              對

接線盒位置              在上面

電壓              12直流-220直流

重量              2.11千克

比率              不

極              不

階段              不

油漆              不

噪聲級              不

安裝              B14/M63/M71，IEC標準

IP等級              防護等級21

絕緣等級              F

外殼材料              壓鑄鋅合金

齒輪材料              不

框架類型              PARVALUX框架

編碼器              對

圈地              通風

效率              不

效率等級              不

占空比              續

當前              *聯系銷售支持了解負載電流

連接              飛線300mm

所獲證書              不



parvalux成立于1947年，作為英國最早的分馬力電機的制造企業之一，Parvalux為客戶提供世界上最廣泛和可靠的定制直流和交流電機而獲得了良好的聲譽。Parvalux在銷售和生產電機和齒輪箱上不斷加速全球化。



產品

直流無刷電機系列

直流有刷電機系列

交流電機系列

變速箱系列

型號：

SD 13

SD 18

SD 48

SD 28 GWS – SD 29 GWS

SD 13 GWS – SD 18 GWS

SD 48 – GWS

SD 21

SD 41

SD 8

SD 38

SD 28

SD 29

SD41

PM41

PM10

PM11

PM110

PM2

PM4



PM1 Family

Power 45 - 200 Watts

Speed 1500 - 4000 RPM

Torque 0.3 - 0.5 Nm

Voltage 12DC - 220DC

PM10_1



PM10 Family

Power 23 - 120 Watts

Speed 1500 - 4000 RPM

Torque 0.14 - 0.18 Nm

Voltage 12DC - 220DC



PM11 Family

Power 33 - 160 Watts

Speed 1500 - 4000 RPM

Torque 0.2 - 0.3 Nm

Voltage 12DC - 220DC



PM110 Family

Voltage 12DC - 220DC



PM2 Family

Power 60 - 330 Watts

Speed 1500 - 4000 RPM

Torque 0.4 - 0.6 Nm

Voltage 12DC - 220DC



PM3 Family

Power 33 - 200 Watts

Speed 1500 - 4000 RPM

Torque 0.2 - 0.4 Nm

Voltage 12DC - 220DC



PM4 Family

Power 45 - 260 Watts

Speed 1500 - 4000 RPM

Torque 0.3 - 0.5 Nm

Voltage 12DC - 220DC

PM5

PM5 Family

Power 60 - 300 Watts

Speed 1500 - 4000 RPM

Torque 0.4 - 0.6 Nm

Voltage 12DC - 220DC



PM50-50 Family

Power 90 - 190 Watts

Speed 1500 - 4000 RPM

Torque 0.16 - 1 Nm

Voltage 12DC - 220DC



PM6 Family

Power 75 - 410 Watts

Speed 1500 - 4000 RPM

Torque 0.5 - 0.8 Nm

Voltage 12DC - 220DC



PM60 Family

Power 105 - 575 Watts

Speed 1500 - 4000 RPM

Torque 0.7 - 1.1 Nm

Voltage 12DC - 220DC



PM7 Family

Power 7.5 - 40 Watts

Speed 1500 - 4000 RPM

Torque 0.05 - 0.08 Nm

Voltage 12DC - 220DC



PM70 Family

Power 80-354

Speed 1500-4000

Torque 0.51 - 0.85

Voltage 12DC - 220DC



PM8 Family

Power 13 - 55 Watts

Speed 1500 - 4000 RPM

Torque 0.08 - 0.11 Nm

Voltage 12DC - 220DC



PM9 Family

Power 19 - 90 Watts

Speed 1500 - 4000 RPM

Torque 0.12 - 0.17 Nm

Voltage 12DC - 220DC



PM90 Family

Power 113 - 656 Watts

Speed 1500 - 5000 RPM

Torque 0.7 - 1.3 Nm

Voltage 12DC - 220DC



PM95 Family

Power 168 - 984 Watts

Speed 1500 - 5000 RPM

Torque 1.1 - 1.9 Nm

Voltage 12DC - 220DC



PM1-L Family

Power 45 - 200 Watts

Speed 25 - 780 RPM

Torque 1,2 - 10.4 Nm

Voltage 12DC - 220DC



PM1-LB Family

Power 45 - 200 Watts

Speed 25 - 780 RPM

Torque 1.2 - 10.4 Nm

Voltage 12DC - 220DC



PM1-LH Family

Power 45 - 200 Watts

Speed 25 - 780 RPM

Torque 1.2 - 10.4 Nm

Voltage 12DC - 220DC



PM1-LHB Family

Power 45 - 200 Watts

Speed 25 - 780 RPM

Torque 1.2 -10.4 Nm

Voltage 12DC - 220DC



PM1-LIS Family

Power 45 - 200 Watts

Speed 4 - 667 RPM

Torque 1 - 74 Nm

Voltage 12DC - 220DC



PM1-LWS Family

Power 45 - 200 Watts

Speed 0.4 - 80 RPM

Torque 9 - 100 Nm

Voltage 12DC - 220DC



PM1-M Family

Power 45-200 Watts

Speed 21 - 970 RPM

Torque 1 - 7.9 Nm

Voltage 12DC - 220DC



PM1-MB Family

Power 45 - 200 Watts

Speed 21 - 970 RPM

Torque 1 - 7.9 Nm

Voltage 12DC - 220DC



PM1-MIS Family

Power 45 - 200 Watts

Speed 15 - 623 RPM

Torque 2 - 37 Nm

Voltage 12DC - 220DC



PM1-MM Family

Power 45 - 200 Watts

Speed 0.3 - 59 RPM

Torque 5 - 11.8 Nm

Voltage 12DC - 220DC



PM10-GB28 Family

Power 23 - 120 Watts

Voltage 12DC - 220DC



PM10-LIS Family

Power 23 - 120 Watts

Speed 4 - 667 RPM

Torque 1 - 55 Nm

Voltage 12DC - 220DC



PM10-LWS Family

Power 23 - 120 Watts

Speed 0.4 - 80 RPM

Torque 4 - 100 Nm

Voltage 12DC - 220DC



PM10-M Family

Power 23 - 120 Watts

Speed 21 - 970 RPM

Torque 0.5 - 5.3 Nm

Voltage 12DC - 220DC



PM10-MB Family

Power 23 - 120 Watts

Speed 21 - 970 RPM

Torque 0.5 - 5.3 Nm

Voltage 12DC - 220DC



PM10-MM Family

Power 23 - 120 Watts

Speed 0.3 - 59 RPM

Torque 5 - 11.8 Nm

Voltage 12DC - 220DC



PM10-MWS Family

Power 23 - 120 Watts

Speed 1 - 149 RPM

Torque 3.1 - 45 Nm

Voltage 12DC - 220DC



PM10-S Family

Power 23 - 120 Watts

Speed 21 - 970 RPM

Torque 0.5 - 4 Nm

Voltage 12DC - 220DC



PM10-SIS Family

Power 23 - 120 Watts

Voltage 12DC - 220DC



PM10-SS Family

Power 23 - 120 Watts

Speed 0.5 - 150 RPM

Torque 3 - 5.9 Nm

Voltage 12DC - 220DC



PM10-SWS Family

Power 23 - 120 Watts

Speed 1 - 101 RPM

Torque 4 - 11 Nm

Voltage 12DC - 220DC



PM11-GB28 Family

Power 33 - 160 Watts

Voltage 12DC - 220DC



PM11-LIS Family

Power 33 - 160 Watts

Speed 4 - 667 RPM

Torque 1 - 74 Nm

Voltage 12DC - 220DC



PM11-LWS Family

Power 33 - 160 Watts

Voltage 12DC - 220DC



PM11-M Family

Power 33 - 160 Watts

Voltage 12DC - 220DC



PM11-MWS Family

Power 33 - 160 Watts

Voltage 12DC - 220DC



PM11-S Family

Power 33 - 160 Watts

Voltage 12DC - 220DC



PM11-SIS Family

Power 33 - 160 Watts

Voltage 12DC - 220DC



PM2-L Family

Power 60 - 330 Watts

Speed 25 - 780 RPM

Torque 1.6 - 13.9 Nm

Voltage 12DC - 220DC



PM2-LB Family

Power 60 - 330 Watts

Speed 25 - 780 RPM

Torque 1.6 - 13.9 Nm

Voltage 12DC - 220DC



PM2-LH Family

Power 60 - 330 Watta

Speed 25 - 780 RPM

Torque 1.6 - 13.9 Nm

Voltage 12DC - 220DC



PM2-LHB Family

Power 60 - 330 Watts

Speed 25 - 780 RPM

Torque 1.6 - 13.9 Nm

Voltage 12DC - 220DC



PM2-LIS Family

Power 60 - 330 Watts

Speed 4 - 667 RPM

Torque 2 - 82 Nm

Voltage 12DC - 220DC



PM2-LWS Family

Power 60 - 330 Watts

Voltage 12DC - 220DC



PM2-M Family

Power 60 - 330 Watts

Voltage 12DC - 220DC



PM2-MB Family

Power 60 - 330 Watts

Voltage 12DC - 220DC

PM1 Family

Power 45 - 200 Watts

Speed 1500 - 4000 RPM

Torque 0.3 - 0.5 Nm

Voltage 12DC - 220DC

PM10_1

PM10 Family

Power 23 - 120 Watts

Speed 1500 - 4000 RPM

Torque 0.14 - 0.18 Nm

Voltage 12DC - 220DC

PM11

PM11 Family

Power 33 - 160 Watts

Speed 1500 - 4000 RPM

Torque 0.2 - 0.3 Nm

Voltage 12DC - 220DC

PM110

PM110 Family

Voltage 12DC - 220DC

PM2_1

PM2 Family

Power 60 - 330 Watts

Speed 1500 - 4000 RPM

Torque 0.4 - 0.6 Nm

Voltage 12DC - 220DC

PM3_1

PM3 Family

Power 33 - 200 Watts

Speed 1500 - 4000 RPM

Torque 0.2 - 0.4 Nm

Voltage 12DC - 220DC

PM4_1

PM4 Family

Power 45 - 260 Watts

Speed 1500 - 4000 RPM

Torque 0.3 - 0.5 Nm

Voltage 12DC - 220DC

PM5

PM5 Family

Power 60 - 300 Watts

Speed 1500 - 4000 RPM

Torque 0.4 - 0.6 Nm

Voltage 12DC - 220DC

PM50-50_1

PM50-50 Family

Power 90 - 190 Watts

Speed 1500 - 4000 RPM

Torque 0.16 - 1 Nm

Voltage 12DC - 220DC

PM6_1

PM6 Family

Power 75 - 410 Watts

Speed 1500 - 4000 RPM

Torque 0.5 - 0.8 Nm

Voltage 12DC - 220DC

PM60_1

PM60 Family

Power 105 - 575 Watts

Speed 1500 - 4000 RPM

Torque 0.7 - 1.1 Nm

Voltage 12DC - 220DC

PM7_1

PM7 Family

Power 7.5 - 40 Watts

Speed 1500 - 4000 RPM

Torque 0.05 - 0.08 Nm

Voltage 12DC - 220DC

PM70

PM70 Family

Power 80-354

Speed 1500-4000

Torque 0.51 - 0.85

Voltage 12DC - 220DC

PM8_1

PM8 Family

Power 13 - 55 Watts

Speed 1500 - 4000 RPM

Torque 0.08 - 0.11 Nm

Voltage 12DC - 220DC

PM9_1

PM9 Family

Power 19 - 90 Watts

Speed 1500 - 4000 RPM

Torque 0.12 - 0.17 Nm

Voltage 12DC - 220DC

PM90

PM90 Family

Power 113 - 656 Watts

Speed 1500 - 5000 RPM

Torque 0.7 - 1.3 Nm

Voltage 12DC - 220DC

PM95

PM95 Family

Power 168 - 984 Watts

Speed 1500 - 5000 RPM

Torque 1.1 - 1.9 Nm

Voltage 12DC - 220DC

GB0 Family

GB12 Family

GB12 Family

GB28 Family

GB28 Family

GB4 Family

GB4 Family

GB41 Family

GB41 Family

GB9_1

GB9 Family

L3P

L3P
