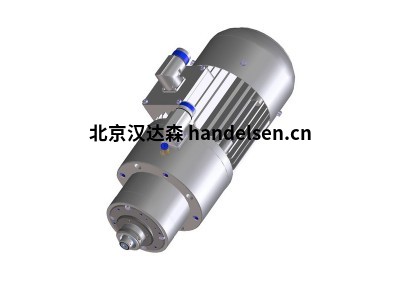

MFW-1220/45 CSC - 銑削主軸
配備HSK-E50工具接口和軸冷卻
最佳的熱特性
出色的平穩(wěn)運行
終極精準
出色的可重復性
軸承設(shè)計用于最大負載和速度
其他產(chǎn)品信息
外殼直徑(mm) 120
長度(mm) 402
最大。速度(rpm) 45000
重量(kg) 25
電機頻率最大 (赫茲) 1500
功率S1(KW) 11
動力S6 60%(KW) 13.8
扭矩S1(Nm) 55
扭矩S6 60%(Nm) 69
工具界面 HSK-E40
潤滑
油氣
選項
包括:通過工具冷卻,編碼器,工具檢測,電機+軸承溫度傳感器
可選:振動傳感器,SmartVision
